Hot water+heating+cooling air source heat pump connect to Fan Coil

FOB Price:

US 599-9,998 / Piece

Min.Order Quantity:

3 Piece/Pieces

Supply Ability:

400 Piece/Pieces per Day

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON

Products Model:

DE-180W/DR

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-180W/DR

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Case.Fibre complex board
Delivery Detail: 25 days after receiving deposit

Specifications

Product Description

Product Picture

Hot water+heating+cooling air source heat pump connect to Fan Coil

Product Detail

Product Information

lSuitable for the ambient temp. is -10°C to 45°C area,

lOffer sanitary hot water all the day or floor heating & radiator heating,

lAlso, it can cooling in summer and heating in winter, hot water for the whole year.

lFunction can change according to your choice.

lCOP3.0

l Green Refrigerant R410AWith stable, non-poisonous, superior performances and no fluorine features, the refrigerant green R410a makes no damage to the ozone layer and thus is more enviroment friendly.

l Easy Installation, the unit is with water pump inside, so it is no need to install extra booster pump or circulating pump. If it is connecting to a storage tank, the installation is easier.

Parametres:

Model	DE-180W/DR
Power supply(V/ph/Hz)	380/3/50
* Cooling capacity(kw)	50
*Cooling capacity(BTU)	170600
* Cooling power input(kw)	17.1
** Heating capacity(kw)	56
** Heating capancity(BTU)	191000
** Heating power input(kw)	18
*** Heating capacity(kw)	81
*** Heating capacity(BTU)	276300
*** Heating power input(kw)	18
Max.current(A)	49
Refrigerant	R417A
Refrigerant weight(g)	3500*4
Level against electric shock	I
Water-proof grade	IPX4
Net weight(kg)	662
Net size(mm)	240011302300
Water connection	G2"
Operation temp.range(°C)	-10-45
Noise dB(A)	≤68

Test condition

*Ambient temp.(DB/WB): 20deg.C /15deg.C, Water temp.(Initial/Final): 15deg.C/55deg.C.
**Heating: Ambient temp.(DB/WB): 7deg.C/6deg.C, Water temp.(Initial/Final): 30deg.C/35deg.C.

Company Information

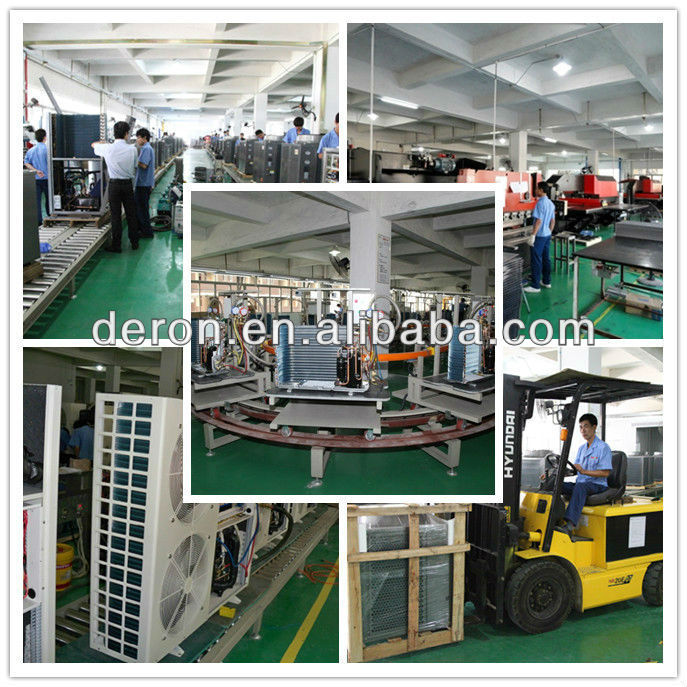

Product Procedure

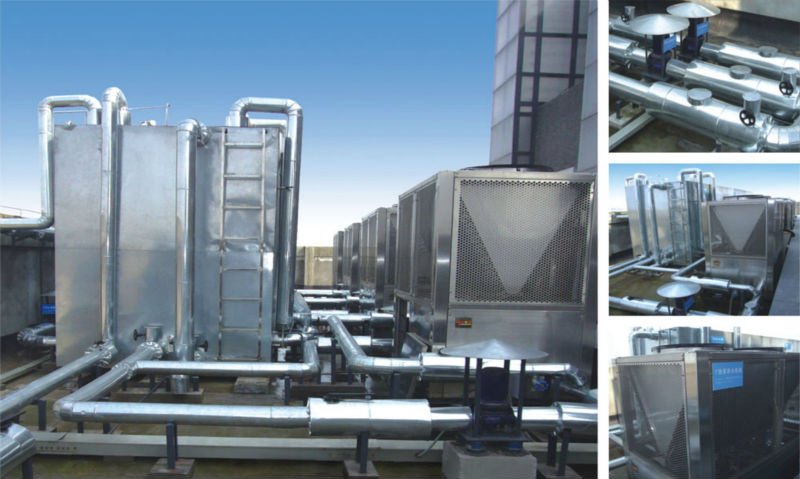

Product Installation

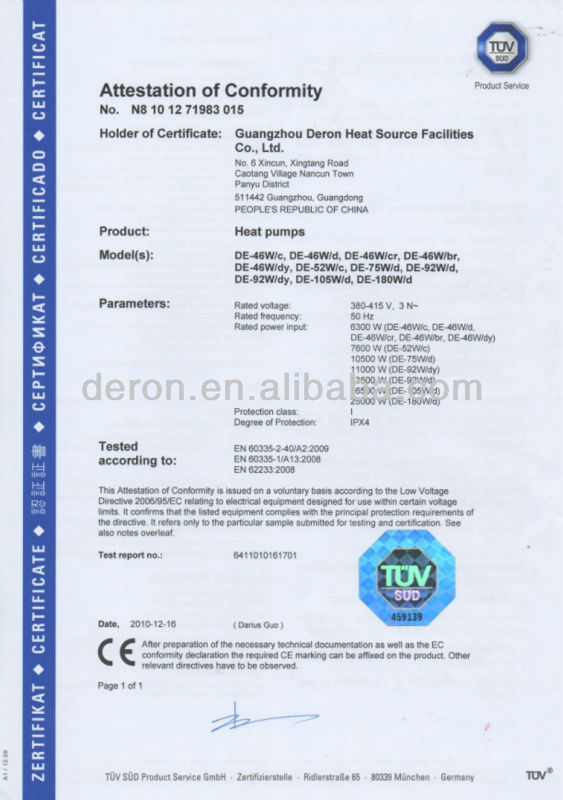

Product Certificate

CE & ISO certificate

We offer OEM service, if you want to know more information about our products welcome to contact us or visit our factory in anytime, we display more new design in our showroom.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
